ultraBASKET STRETCHER
- Impact resistant ABS ASA plastic
- No specified replacement state
- High load capacity of 315 kg
- Corrosion resistant
- QR code with link to instructions for use
Product information "ultraBASKET STRETCHER"
| Product Number | SAN-0087-1 |
|---|---|
| Material | ABS PC Blend / Aluminium Frame |
| Colour | Orange |
| Description 2 | One-piece basket stretcher |
| Description 3 | made of ABS plastic |
| Net weight (kg) | 12.5 |
| Gross weight (kg) | 14 |
| Length product (mm) | 2178 |
| Width product (mm) | 618 |
| Height product (mm) | 189 |
| Maximum load (kg) | 315 |
| Maximum number of persons | 1 |
| Replacement state (years) | - |
| Maximum temperature (°C) | 40 |
| Minimum temperature (°C) | -5 |
| Foot fixation possible | Yes |
|---|---|
| Suitable for rope rescue | Yes |
| Suitable for vertical rescue | Yes |
| Suitable for water rescue | Yes |
| QM class | Medical Device Class I |
| Manufacturer information | Responsible person for the EU | ultraMEDIC GmbH | Im Bruch 11-15 | 56567 Neuwied | www.ultramedic.de |
| Customs tariff no. | 94029000 |
| Country of origin | DE |
| GTIN/EAN: | 4251824302504 |
| Length packaging (mm) | 2200 |
| Width packaging (mm) | 640 |
| Height packaging (mm) | 200 |
| Shipping method | Forwarder |
| Basket stretcher |
| Mattress |
| Footrest |
| 3 patient belts |
| Operating manual |
| Instructions for use 1 | (PDF) |
|---|
The intended use of the ultraBASKET STRETCHER rescue stretcher series is as a basket stretcher. Use as a basket stretcher, i.e. pulling over the floor, is possible in principle, but is associated with very high wear on the tray floor. We offer four nylon plastic skids as accessories for this purpose. These are factory-fitted and recommended for use as a basket stretcher.
The stability of the two-part version, the ultraBASKET STRETCHER TWIN, is even slightly higher compared to the one-part version due to the necessary connecting pins and the securing mechanism on the underside, in the centre of the stretcher, as the area of greatest force application within the two-part basket stretcher is additionally reinforced.
Basket stretchers from the ultraBASKET STRETCHER series are medical devices that can be inspected by any person who is aware of the implications of the decision as part of the annual inspection in accordance with the Medical Devices Operator Ordinance. Detailed information on this can be found in the instructions for use under "Maintenance".

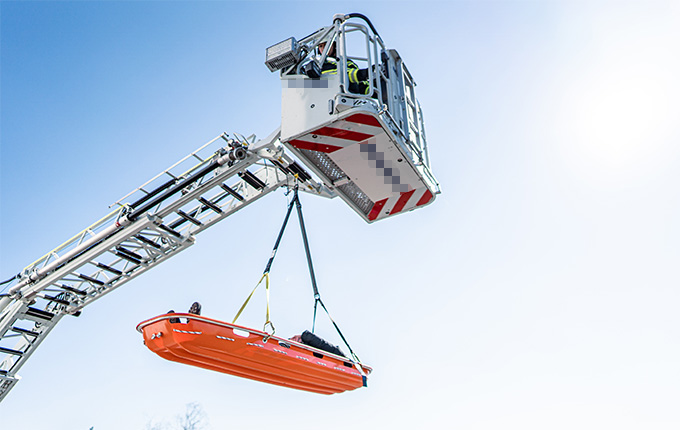

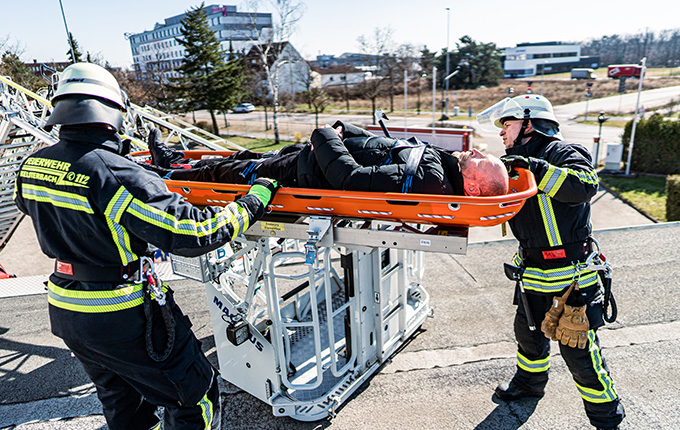

The basket stretchers in the ultraBASKET STRETCHER series (one-part/two-part version) are suitable for use on turntable ladders. The vehicle manufacturer approves the use of the models with the respective brackets. It is therefore advisable to consult the vehicle manufacturer.
The basket stretchers of the ultraBASKET STRETCHER series can be used for the vertical rescue of a casualty using the footrest supplied in accordance with the instructions in the user manual.
There is no specified period of use for the ultraBASKET STRETCHER rescue stretchers. The basket stretchers can be used without restriction as long as the prescribed annual, documented inspection does not reveal any defects. Only the textile components such as the patient harnesses and the all-round running safety rope for fastening should be replaced after 10 years of use.
Yes, it is important that the upper body or head is positioned in the wider half of the basket stretcher. This is also labelled with an additional sticker in the head area, which makes it easier to position correctly.
No, it is crucial to attach the safety belts to the surrounding rope. This is the only way to ensure that the patient is effectively secured during transport and that the straps are tight against the body.
The basket stretcher has 4 attachment points for abseiling or transport slings, recognisable by a round metal eyelet on the sides. Due to the load distribution when transporting a patient, these are not arranged symmetrically. Any slings may only be attached to these eyelets and not to the recessed grips or other points.
|
|
|
|
|
|
| Overview | ||||
|---|---|---|---|---|
| Price |
|
|
|
|
| Description | One-piece basket stretcher made of specially coated ABS plastic with mattress support, footrest and 3 patient straps. The robust and extremely resilient stretcher is suitable for various types of emergency rescue - from simple patient transport and… | Two-piece basket stretcher made of specially coated ABS plastic with mattress support, footrest and 3 patient straps. The robust and extremely resilient stretcher is suitable for various types of emergency rescue - from simple patient transport and… | Compact basket stretcher for rescue from confined spaces - With its newly designed stainless steel substructure, the ultraBASKET STRETCHER SMALL is ideally suited for a range of scenarios. Whether supply or elevator shafts, storage containers, sewer… | Heavy-duty basket stretcher made of specially coated ABS plastic with mattress support, footrest and 4 patient straps. The robust and extremely resilient stretcher is suitable for various types of emergency rescue - from simple patient transport and… |
| Specification | ||||
| Colour | Orange | Orange | Orange | Orange |
| Material | ABS PC Blend / Aluminium Frame | ABS PC Blend, ABS PC Blend / Aluminium Frame | ABS PC Blend, ABS PC Blend / Stainless Steel Frame | ABS PC Blend, ABS PC Blend / Stainless Steel Frame |
| Technical Features | ||||
| Net weight (kg) | 12.5 | 15.5 | 13.7 | 35.94 |
| Length product (mm) | 2178 | 2142 | 2180 | 2141 |
| Width product (mm) | 618 | 618 | 590 | 818 |
| Height product (mm) | 189 | 189 | 200 | 189 |
| Maximum load (kg) | 315 | 315 | 315 | 400 |
| Replacement state (years) | - | - | - | - |
| Manufacturer information | Responsible person for the EU | ultraMEDIC GmbH | Im Bruch 11-15 | 56567 Neuwied | www.ultramedic.de | ultraMEDIC GmbH | Im Bruch 11-15 | 56567 Neuwied | www.ultramedic.de | ultraMEDIC GmbH | Im Bruch 11-15 | 56567 Neuwied | www.ultramedic.de | ultraMEDIC GmbH | Im Bruch 11-15 | 56567 Neuwied | www.ultramedic.de |
| Suitable for dragging | N/A | N/A | Yes | N/A |
| Suitable for rope rescue | Yes | Yes | Yes | Yes |
| Suitable for vertical rescue | Yes | Yes | Yes | Yes |
| Suitable for water rescue | Yes | N/A | N/A | N/A |
| Suitable for confined space rescue | N/A | N/A | Yes | N/A |
| Foot fixation possible | Yes | Yes | Yes | Yes |
